Mobile weather station configuration:

1.1. Hardware Configuration ⚫  CPU Intel Celeron (R) N3450 2GHz 5/11 ⚫  6G memory ⚫  Hard disk 64G ⚫  1920x1080 resolution ⚫  Power: 12V2A

1.2. Operating System This software can run on Microsoft Windows 7 64 bit systems (and above). Currently, only Simplified Chinese version is available

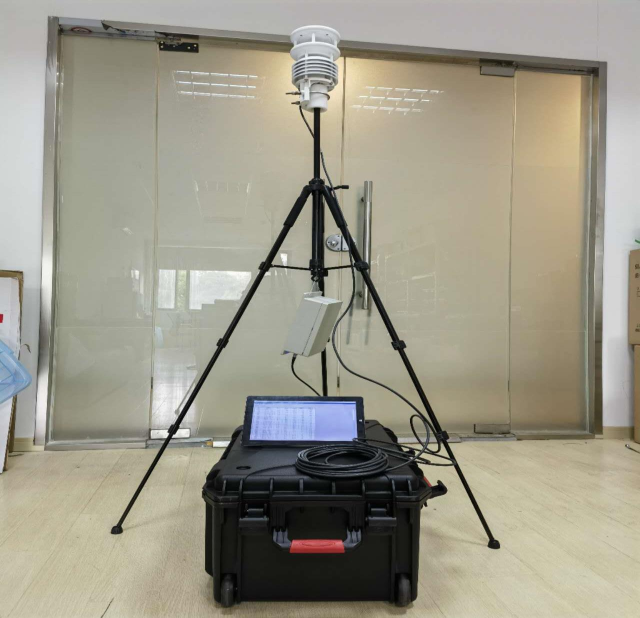

1.3 Portable Station Size Weight Parameters Box Size: 46 * 72 * 35 (L * W * H) cm Weight: 14Kg (including sensor, bracket, tablet, charger Bluetooth module, battery)

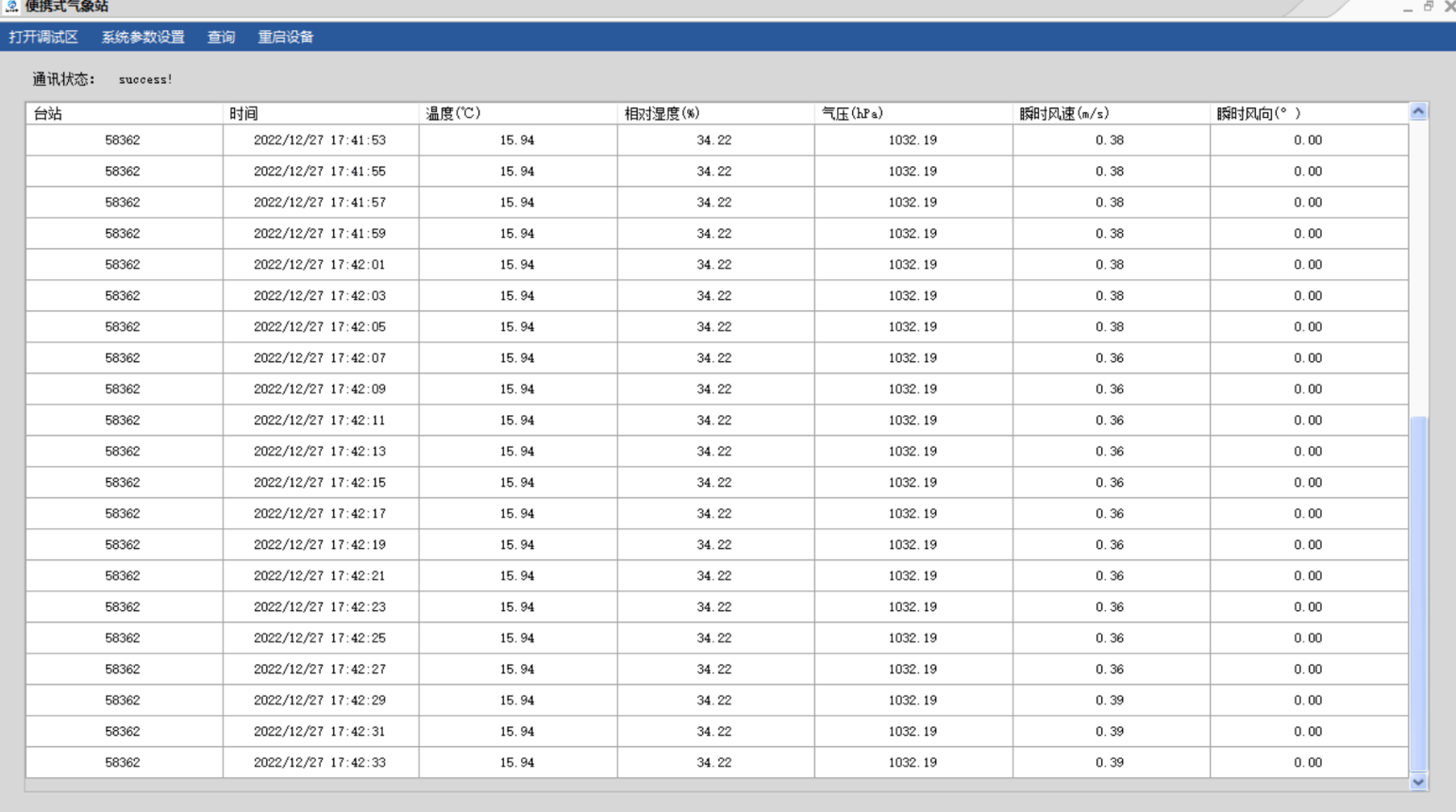

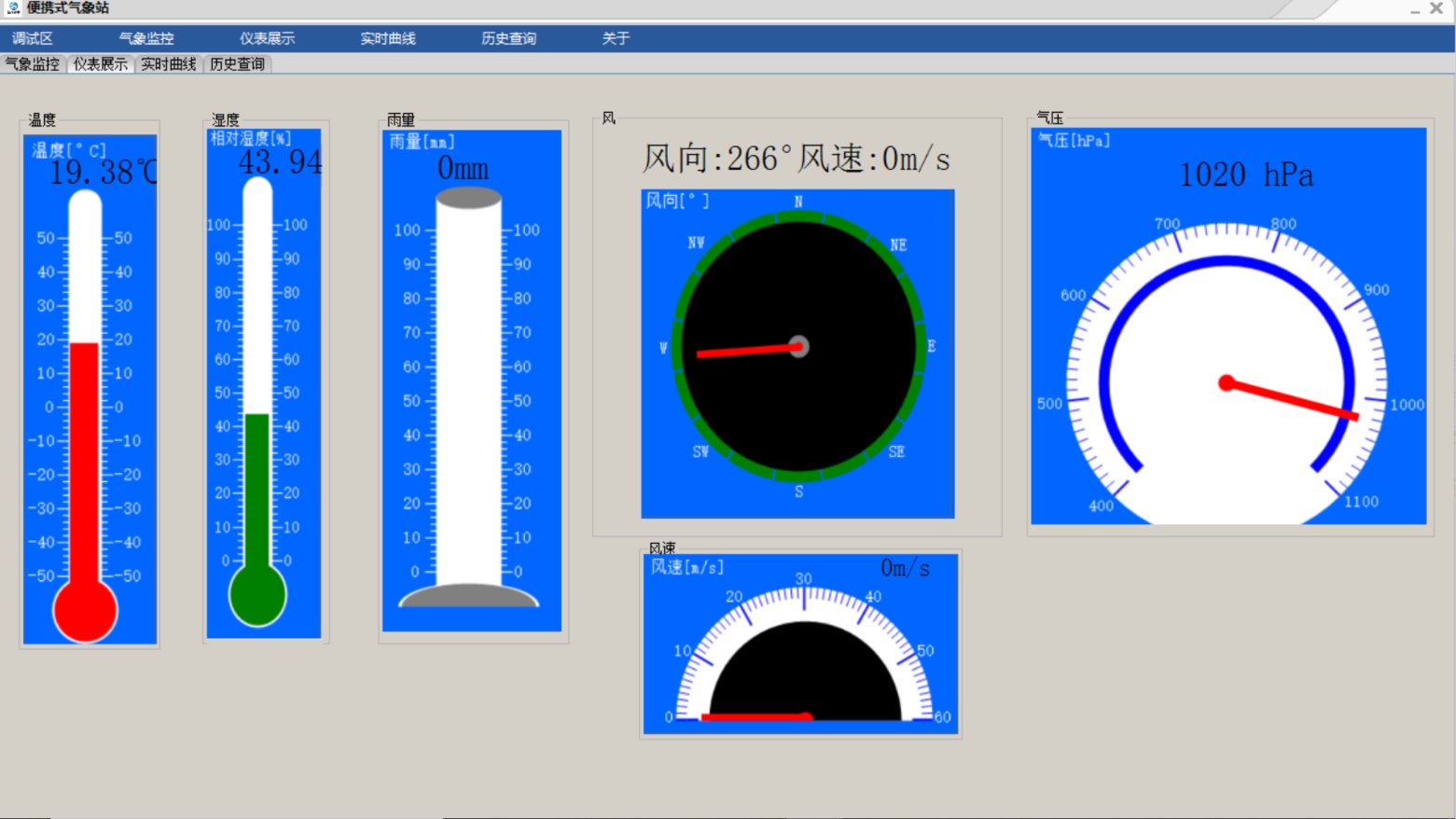

In principle, after the host is turned on, the software automatically runs without the need for a user to start. (This software comes with monitoring processes, which will automatically open when closed, recover automatically when abnormal, and start automatically when powered on.) At the top of the terminal analysis software interface is the title bar, and the blue area below it is the menu bar. Below the blue is the Bluetooth status bar, indicating the status of data reception. Communication status: Indicates the communication status of Bluetooth. The window below consists of four windows: meteorological monitoring, instrument display, real-time curve, and historical query. Meteorological monitoring includes: station name, data time, temperature, humidity, air pressure, wind speed, and wind direction. The instrument display includes: real-time data display on the instrument panel for temperature, humidity, air pressure, rainfall, wind speed, and wind direction. The real-time curves include: real-time curves for temperature, humidity, wind speed, wind direction, and rainfall, and the data elements are displayed over time. Historical queries include: querying and exporting historical data of time, temperature, humidity, air pressure, wind speed, and wind direction for stations containing CS500.
